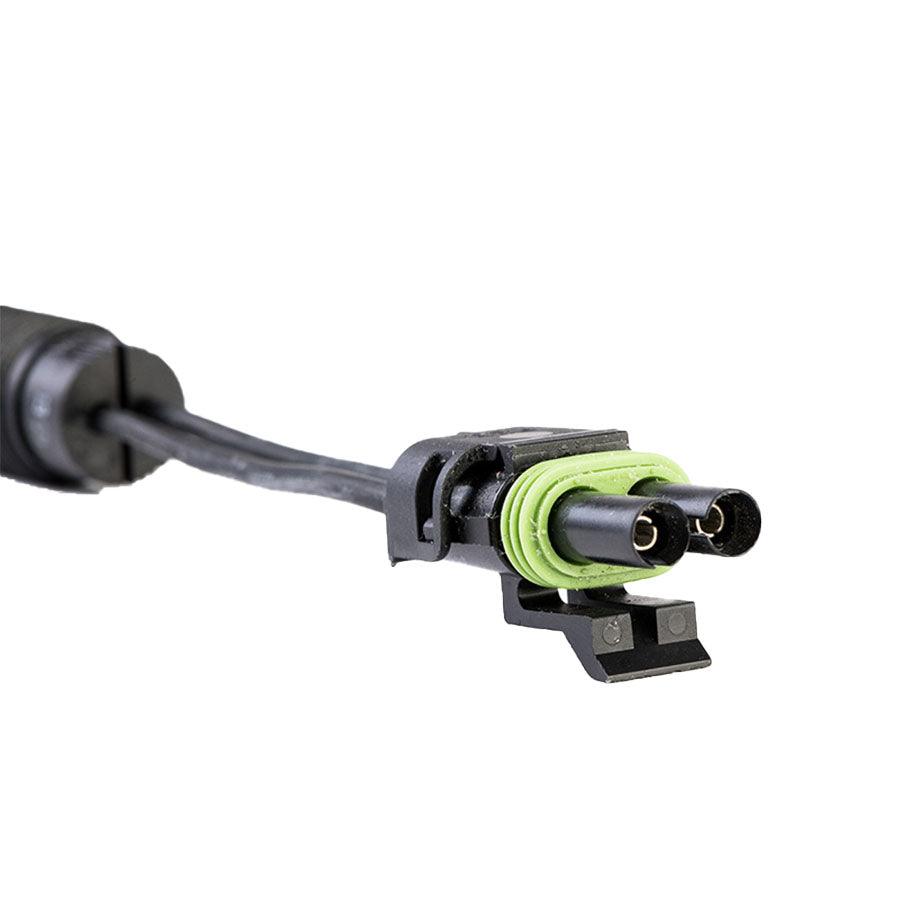

AH116104 Magnetic Pickup Speed Sensor – Compatible with John Deere® Cutting Platforms & Sprayers

Magnetic pickup style speed sensor compatible with select John Deere® cutting platforms and self-propelled sprayers. Designed to provide a stable speed signal for proper machine operation and service diagnostics. Verify fitment by part number and equipment model/serial range before ordering.

Compact Fitment

Compatible with: John Deere® (300 Series Cutting Platforms, 600 Series Cutting Platforms—Rigid/Flex, 600 Series 614R/615R/618R/620R/622R/625R/630R/635R [S.N. 052999 range], 600 Series X Platforms 622X/625X/630X/635X/640X [various S.N. ranges], 900 Series Cutting Platforms [S.N. 625301–685400], Self-Propelled Sprayers 6100/6500/6600/6700)

Detailed Applications

Cutting Platforms

• John Deere® 300 Series Cutting Platforms

• John Deere® 600 Series Cutting Platforms (Rigid and Flex)

• John Deere® 600 Series Cutting Platforms (Brasil)

• John Deere® 600 Series Cutting Platforms (S.N. 052999) — 614R, 615R, 618R, 620R, 622R, 625R, 630R, 635R (Europa)

• John Deere® 600 Series Cutting Platforms (Other Serial Numbers) — 622X, 625X, 630X, 635X, 640X (World; multiple S.N. ranges)

• John Deere® 900 Series Cutting Platform (S.N. 625301–685400)



Self-Propelled Sprayers

• John Deere® 6100, 6500, 6600, 6700

Specifications

• Part Number: AH116104

• Type: Magnetic Pickup Speed Sensor (speed signal sensor)

• Condition: New / unused

• Warranty: 24-Month Limited Warranty / 100,000 Miles

• Packaging: Neutral packaging

Compatible Equipment

Compatible equipment includes: 312, 314, 316, 319, 323, 325, 458, 565, 568, 570, 572, 575, 578, 580, 582, 590, 592, 614R, 615F, 615P, 615R, 616/616F/616R, 618/618F/618PF/618R, 620/620F/620PF/620R, 622/622F/622PF/622R/622X, 625D/625F/625PF/625R/625X, 630/630D/630F/630FD/630PF/630R/630X, 635/635D/635F/635FD/635PF/635R/635X, 640D/640FD/640X, 645FD, 690E, 722PF/722X, 725D/725PF/725X, 730D/730FD/730PF/730X, 735D/735FD/735PF/735X, 740D/740FD/740PF/740X, 745FD, 748, 750A, 842, 852, 854, 862, 864, 890, 895, 896, 912, 913, 914, 915F/915R, 918/918F/918R, 920/920F/920R, 922/922F/922R, 924, 925/925D/925F/925R, 930/930D/930F/930R, 936D, 990, 1165, 1170, 1175, 1185, 1450, 1470, 1550, 1570, 1900, 1910 (Precision Upgrades variants), 2054, 2056, 2058, 2064, 2066, 2254, 2256, 2258, 2264, 2266/2266E, 4890, 4895, 4990, 4995, 6610, 6650, 6700, 6710, 6750, 6810, 6850, 6910, 6950, 7180, 7200, 7250, 7260, 7280, 7300, 7350, 7380, 7400, 7450, 7455, 7460, 7480, 7500, 7550, 7580, 7600, 7610, 7700, 7710, 7750, 7780, 7800, 7810, 7850, 7950, 7980, 9400, 9410, 9450, 9470 STS, 9500, 9501, 9510, 9540, 9550, 9560/9560 STS, 9570 STS, 9580, 9600, 9610, 9640, 9650/9650 STS, 9660/9660 STS/9660 WTS, 9670/9670 STS, 9680, 9750 STS, 9760 STS, 9770 STS, 9780, 9860 STS, 9870 STS, 9880 STS, 9935, 9970, 9976, 9986, 9996, C2 400, C350L/C350T, C400L/C400T, C440, C500L/C500T, C550L/C550T, C650/C650L/C650T, C670, C850/C850T, CTS/CTS II, FA 16/18/20/22/25/30/35, RA 16/18/20/22/25/30/35, RD30F/RD35F/RD40F/RD45F, RDF 30/35/40/45, S4 300/S4 400, S5 500, S7 600/S7 700, S430/S440, S540/S550/S560, S650/S660 (Precision Upgrades variants), S670/S670H (Precision Upgrades variants), S690, S760 (Precision Upgrades), S770 (Precision Upgrades), T5 400/500/600/700, T6 500/600, T550/T560, T660/T670, W2 400, W330, W430, W540/W550, W650/W660, XA 22/25/30/35/40, ZPF618/ZPF620/ZPF622/ZPF625/ZPF630/ZPF635.

Fitment note: This list is provided as a reference—confirm by AH116104 and your machine details (model + serial range).

Condition / Packaging Note

This product is new and unused, but it doesn’t come in the usual retail packaging. It was intended for a specific purpose but is now available for sale. We’ve thoroughly inspected and tested it to ensure it meets the same quality standards as a regular Elite Series – Premium Performance product. If you have any questions, please ask.

⚠ WARNING: Cancer and Reproductive Harm — www.P65warnings.ca.gov

⚠Legal Compliance & Safety

This product is not endorsed by or affiliated with any original equipment manufacturer. All OEM names, numbers, and trademarks are used solely to indicate compatibility or reference applications.

- - - -

More Information:

Expanded Fitment

Compatible with:

300 Series Cutting Platforms

• JOHN DEERE®
  • 300 SERIES CUTTING PLATFORMS

600 Series Cutting Platforms (Rigid and Flex)

• JOHN DEERE®
  • 600 SERIES (RIGID AND FLEX) CUTTING PLATFORMS (BRASIL)

600 Series Cutting Platforms (S.N.052999)

• JOHN DEERE®
  • 614R (600 SERIES) CUTTING PLATFORM (S.N.052999) (EUROPA)
  • 615R (600 SERIES) CUTTING PLATFORM (S.N.052999) (EUROPA)
  • 618R (600 SERIES) CUTTING PLATFORM (S.N.052999) (EUROPA)
  • 620R (600 SERIES) CUTTING PLATFORM (S.N.052999) (EUROPA)
  • 622R (600 SERIES) CUTTING PLATFORM (S.N.052999) (EUROPA)
  • 625R (600 SERIES) CUTTING PLATFORM (S.N.052999) (EUROPA)
  • 630R (600 SERIES) CUTTING PLATFORM (S.N.052999) (EUROPA)
  • 635R (600 SERIES) CUTTING PLATFORM (S.N.052999) (EUROPA)

600 Series Cutting Platforms (Other Serial Numbers)

• JOHN DEERE®
  • 622X (600 SERIES) CUTTING PLATFORM (S.N.049999) (WORLD)
  • 622X (600 SERIES) CUTTING PLATFORM (S.N.050000 - 052999) (WORLD)
  • 625X (600 SERIES) CUTTING PLATFORM (S.N.049999) (WORLD)
  • 625X (600 SERIES) CUTTING PLATFORM (S.N.050000 - 052999) (WORLD)
  • 625X CUTTING PLATFORM (S.N.053000 - 056000) (WORLD)
  • 630X (600 SERIES) CUTTING PLATFORM (S.N.049999) (WORLD)
  • 630X (600 SERIES) CUTTING PLATFORM (S.N.050000 - 052999) (WORLD)
  • 630X CUTTING PLATFORM (S.N.053000 - 056000) (WORLD)
  • 635X (600 SERIES) CUTTING PLATFORM (S.N.049999) (WORLD)
  • 635X (600 SERIES) CUTTING PLATFORM (S.N.050000-052999) (WORLD)
  • 640X (600 SERIES) CUTTING PLATFORM (S.N.049999) (WORLD)
  • 640X (600 SERIES) CUTTING PLATFORM (S.N.050000-052999) (WORLD)

Self-Propelled Sprayers

• JOHN DEERE®
  • 6100 SELF-PROPELLED SPRAYER
  • 6500 SELF-PROPELLED SPRAYER
  • 6600 SELF-PROPELLED SPRAYER
  • 6700 SELF-PROPELLED SPRAYER

900 Series Cutting Platforms

• JOHN DEERE®
  • 900 SERIES CUTTING PLATFORM (S.N.625301-685400)
